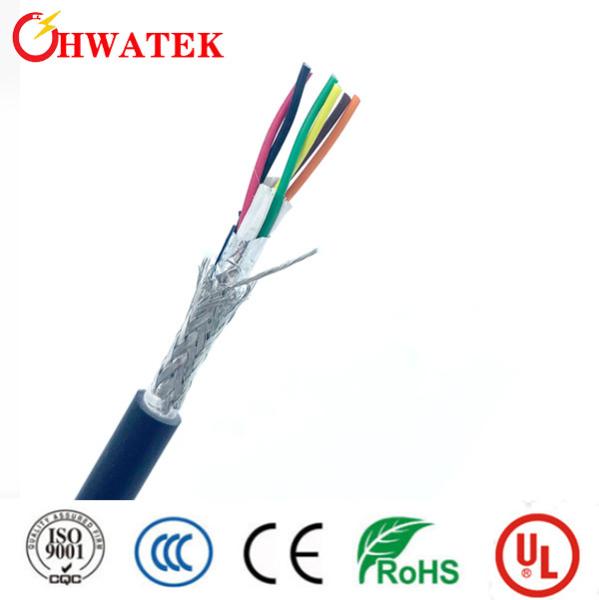

6C X 28 AWG PVC BRIGHT YL 0.62MM Tinned copper stranded 30V 80℃ Cable
Product Description
Application:Internal wring or external interconnection of electronic equipment.
Product character:
1) Nominal voltage: 30V
2) Rated temperature:80℃
3) Conductor: Tinned copper stranded
4) Insulator:PFA
5) Operating temperature : 80℃
6) Colours: Insualtion:per request
7) Standard: NOUL
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| | | | | |
| Conductor | | | Tinned copper stranded |
| Cross section | | | 28AWG |
| Construction | | | 7/0.127mm |
| Strand Dia. | | | 0.38mm |
| Insulation | | | PFA |
| Nom.Thickness | | | 0.10mm |
| Insulation Dia. | | | 0.62±0.08mm |
| Insulation colour | | | 1.Black 2.Red 3.Gray 4.Green 5.Blue 6.Yellow |
| Filler | | | Optional |
| Material | | | Non-woven tape,≥25% |
| Assembly | | | 6Cx28AWG+W |
| Jacket | | | PVC |
| Nom.Thickness | | | 0.64mm |
| Outer Dia. | | | 3.50±0.25mm |
| Colour | | | Yellow |
| | | | | |
| | | | | |
Construction
Conductor : stranded, tinned or bare copper
Insulation:PFA
Insulation:per request
Jacket:PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 0.5kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

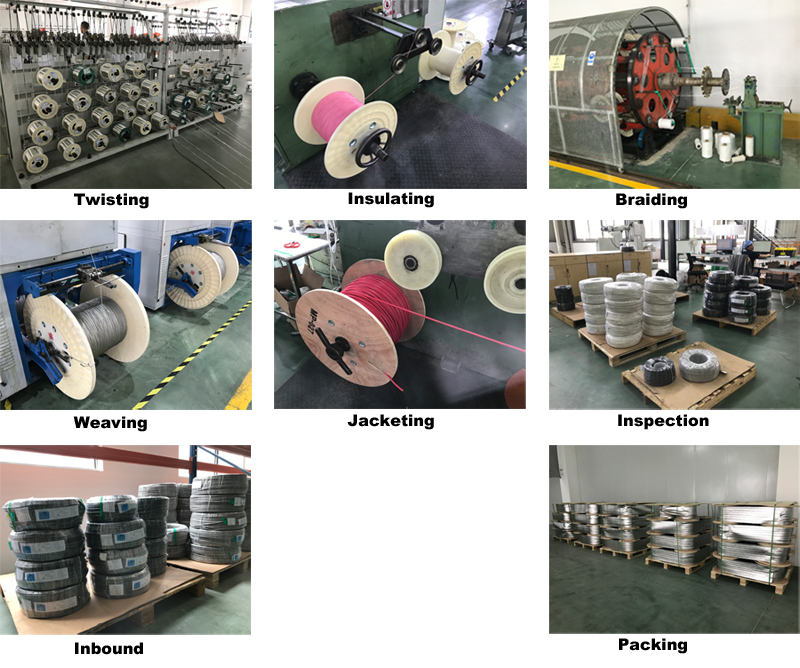

Production Progress
