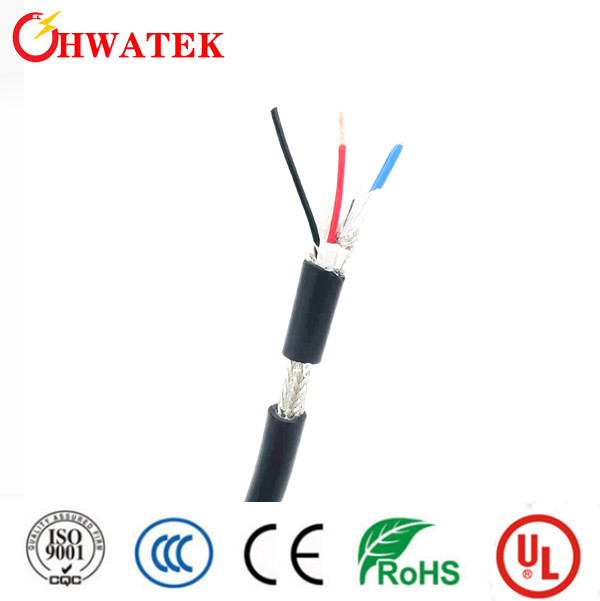

UL2461 3C AWG20 Flexible Wires And Cables With Tinned Or Bare Copper Conductor
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
High-temperature resistance, anti-acid, environmental protection etc.
Application: For internal wiring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Constructure:
Tinned or bare copper, stranded or single conductor
SR-PVC or XLPE insulation
Two or more single-core wires is twisted into pair or cabling again to form round cable, or flat, oval-shaped cable
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PVC jacket
Construction
Conductor : solid or stranded, tinned or bare copper
Insulation:PVC, SRPVC ,PP, PE, FOAM PE
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC
Standards
International: UL758 , UL1581, UL2461
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:80℃
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 0.5kV/1min
Printing :E258652 AWM STYLE 2461 80℃ 300V VW-1 --- c
Note: Where "XX" means AWG No.
Properties
effectively resist electromaganetic interference
Excellent insulation performance
Specifications
| ITEM | 3C×20AWG(26/0.16T) |
| CONDUCTOR | Material | Tinned copper stranded |
| Size | 26/0.16±0.008mm |
| O.D.(Ref) | 0.94mm |
| INSULATION | Material | SR-PVC |
| Min.average thickness | 0.23mm |
| Min.thickness at any point | 0.18mm |
| O.D. | 1.50±0.10mm |
| CABLING | Assembly | 3C×20AWG(26/0.16T) |
| JACKET | Material | PVC |
| Min.average thickness | 0.76mm |
| Min.thickness at any point | 0.61mm |
| O.D. | 5.00±0.20mm |
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
